Engineering for Wear: Carbon Fiber Slider Components
How PA6-CF 3D printed components delivered industrial-grade wear resistance.
Heavy-duty mechanical components often need to balance strength, durability, and precise fit while withstanding constant friction and mechanical stress. For specialized components, traditional manufacturing can make low-volume production costly and slow, particularly when custom tooling or machining is required. Composite 3D printing provides an efficient alternative, allowing durable, application-specific components to be produced quickly and cost-effectively without sacrificing the performance needed for demanding mechanical systems.
Technology
Fused Deposition Modeling (FDM) & Composite 3D Printing
Material
Carbon Fiber-Reinforced Nylon 6 (PA6-CF)
Volume
Low-to-Medium
THE CHALLENGE

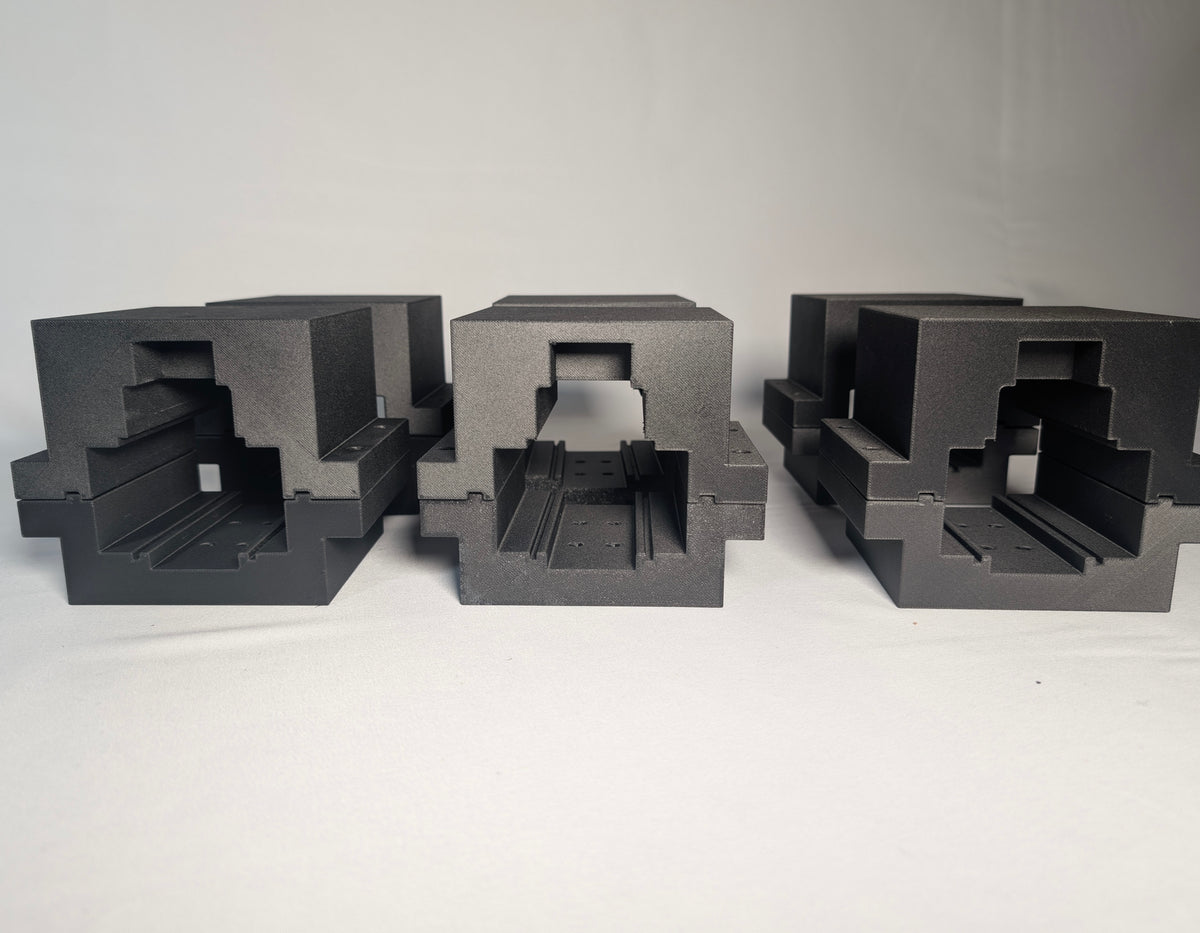

The client needed custom slider components capable of withstanding continuous friction and mechanical stress within a heavy-duty guide system. Traditional options, such as CNC-machined industrial plastics or off-the-shelf metal components, created significant cost and lead-time challenges, particularly for low-volume production. Custom machining required setup and production time that delayed testing and implementation, while standard metal components required ongoing lubrication and were not tailored to the system’s specific requirements. The client struggled finding a way to produce durable, precisely fitted components quickly and economically without compromising performance.
What we did
Engineered for Continuous Wear: Developed custom slider components around the system’s specific track clearances and the friction and mechanical loads they would experience in operation.
Optimized Internal Strength: Tuned the internal structure with 60% infill and six solid outer walls to provide the stiffness and resistance needed to withstand repeated loading and torsional forces.
Selected a High-Performance Composite: Manufactured the sliders in PA6-CF, combining the wear resistance and low friction of nylon with carbon-fiber reinforcement for added strength and rigidity.

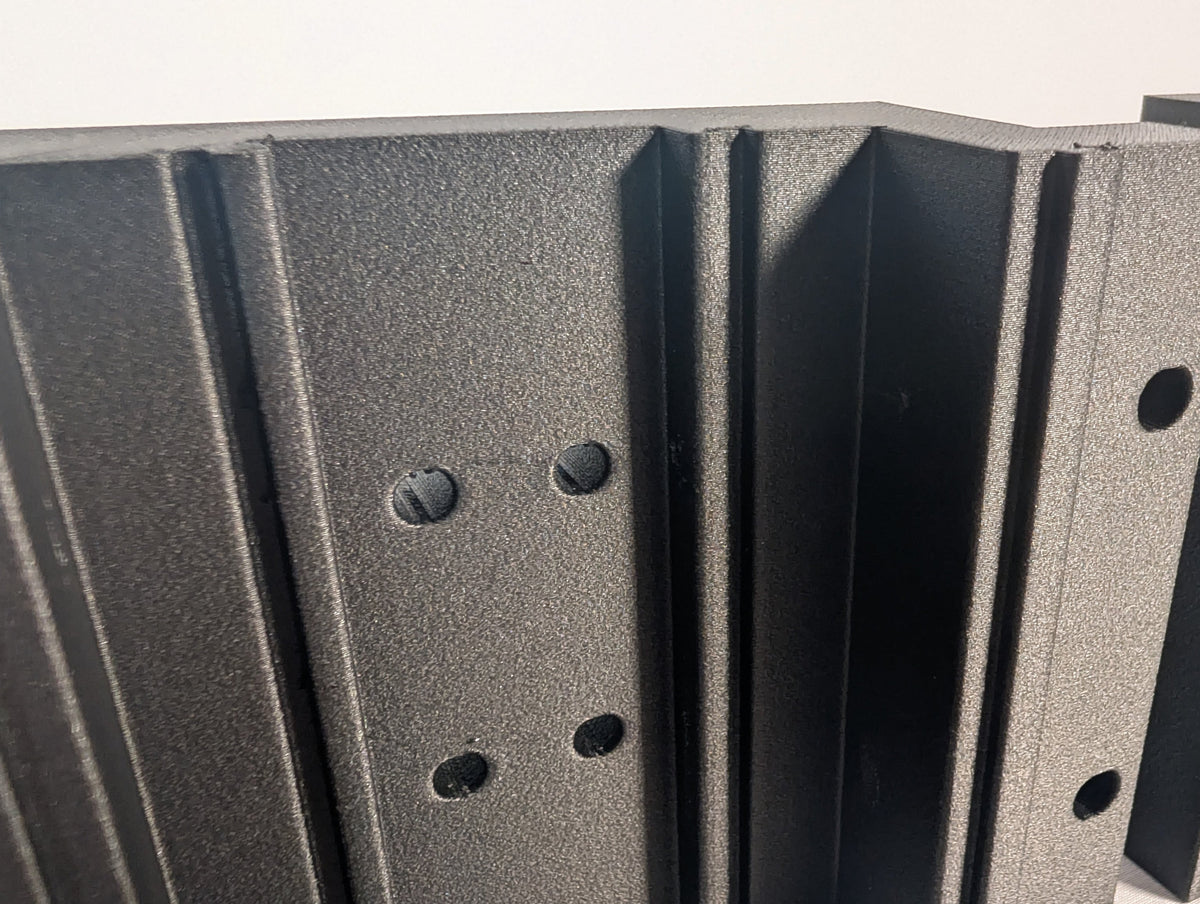

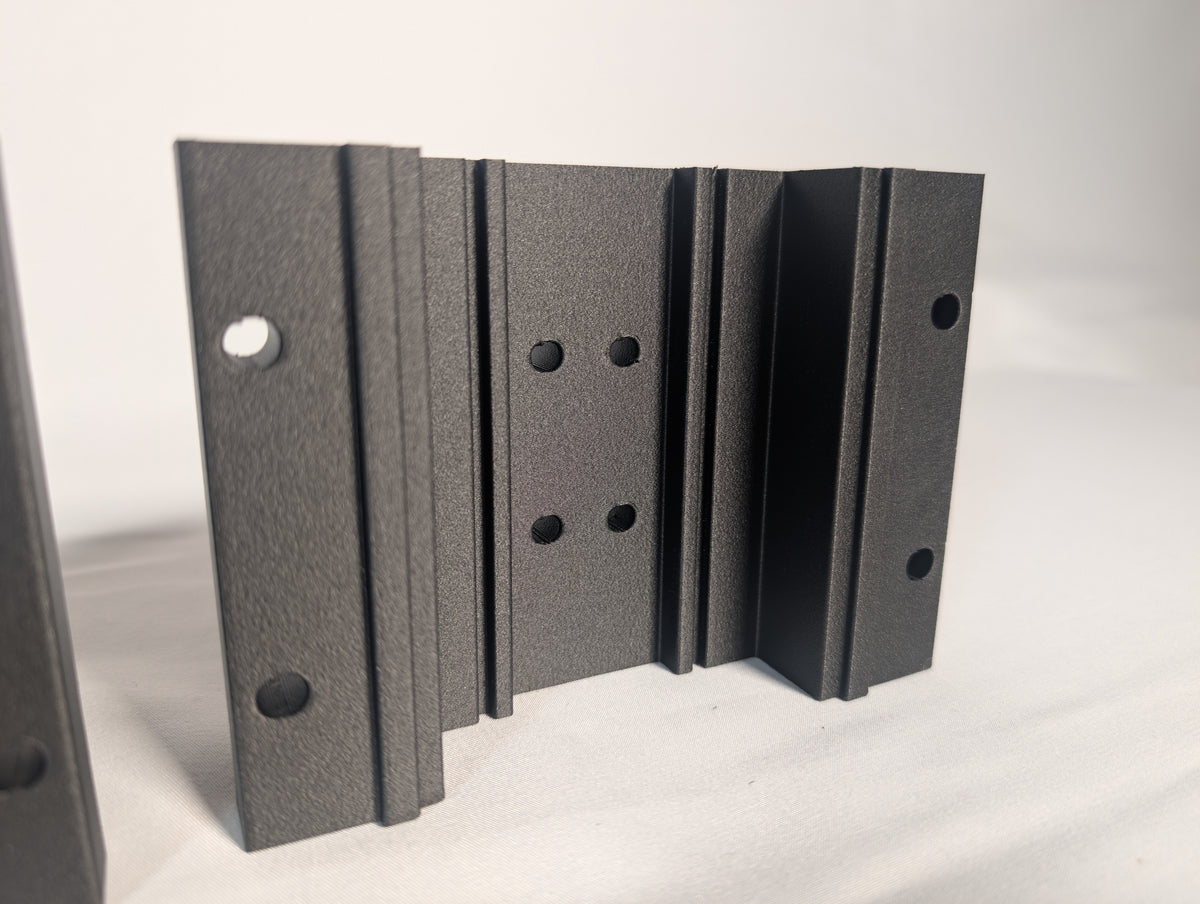

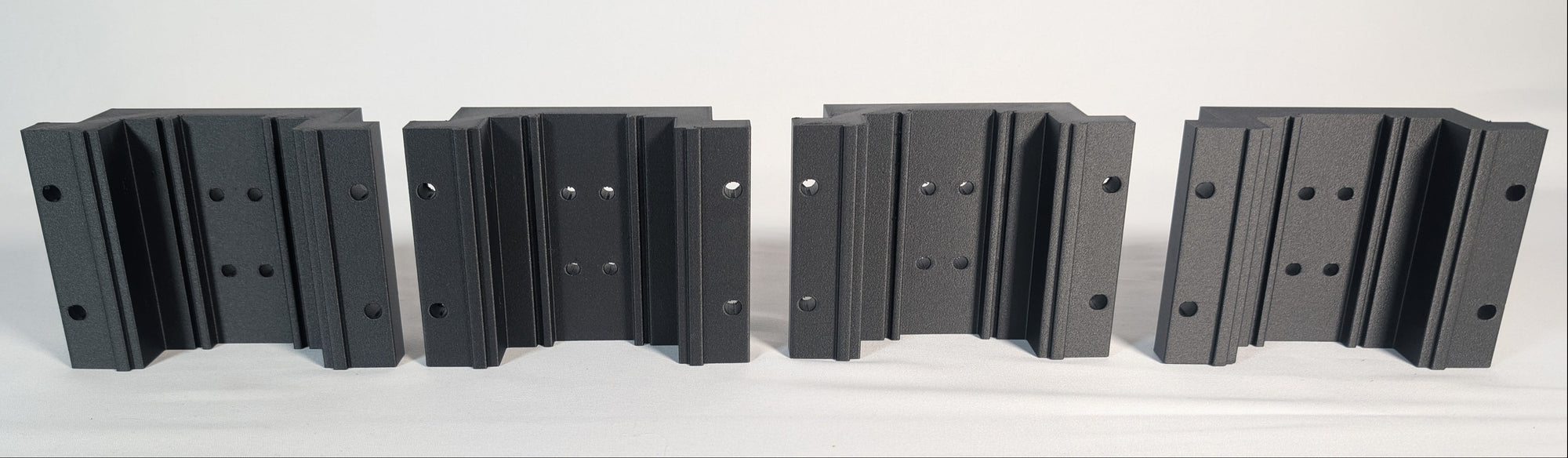

Verified and Integrated the Parts: Removed print supports, checked critical dimensions, and prepared the finished sliders for direct integration into the mechanical guide system, where they withstood the demands of continuous operation.
why it worked
The combination of PA6-CF and the reinforced print design addressed the limitations of the materials previously considered for the sliders. CNC-machined industrial polymers could provide the required wear resistance, but producing custom parts this way came with higher costs and longer lead times, especially for low-volume production. PA6-CF offered similar wear-resistant and low-friction properties through its nylon base, while the carbon-fiber reinforcement added the strength and stiffness needed to withstand repeated mechanical loads. This allowed the sliders to be tailored to the system rather than relying on standard metal components that required ongoing lubrication.
The manufacturing process also made it possible to produce these custom components without the setup, tooling, and minimum quantities associated with CNC machining. We could adjust the sliders’ internal structure specifically for their operating conditions, using 60% infill and six solid walls to provide additional resistance to crushing, shearing, and deformation. As a result, the finished components were delivered in days rather than weeks, at a significantly lower cost, while still withstanding the friction and mechanical demands of the guide system.
Where a model like this fits
Custom 3D printing is well suited to functional components that need to be designed around a specific machine, assembly, or operating environment. This can include brackets, guides, mounts, housings, jigs, fixtures, replacement parts, and other mechanical components where an off-the-shelf option doesn’t provide the right fit or performance. It is particularly valuable for low-volume production, specialized equipment, and replacement parts where conventional machining can make custom designs costly or slow to produce. When a component needs to be customized for its application without the expense and lead time of traditional manufacturing, we can help develop a durable, production-ready solution around the exact requirements.
