3D Printed Jigs and Fixtures in Ontario

Drill jigs, assembly fixtures and end-of-arm tooling in carbon fibre nylon. Lighter than metal, made in days, printed in Cambridge.

Black 3D printed production fixtures
Same day – 3 daysvs 2–3 weeks for CNC machining
$50–$100+vs $150–$1,000+ machined
45Rail regulators secured with printed lockouts

Why 3D print it

Why 3D print your jigs and fixtures

Ready in hours to days

Most fixtures are printed the same day to 3 days, versus 2 to 3 weeks for CNC machining.

A fraction of machined cost

Thermoplastic and carbon fibre tooling replaces machined metal for $50 to $100+ instead of $150 to $1,000+.

Lighter on the line

Carbon fibre nylon fixtures are stiff but light, which reduces operator fatigue.

Inserts and nests built in

We add heat-set threaded inserts, part nests and ergonomic grips, and reprint quickly when the line changes.

3D printed vs CNC machined

Metric3D printedCNC machined
Lead timeSame day – 3 days of printing2–3 weeks
Cost$50–$100+$150–$1,000+

What we make

Custom jigs and fixtures for Ontario production lines

We design and 3D print drill jigs, assembly fixtures, check gauges and end-of-arm tooling for manufacturers in Cambridge, Kitchener-Waterloo and across Ontario. Send a part, a drawing or a STEP file and we model the fixture in SolidWorks, print it in carbon fibre nylon, and add heat-set threaded inserts so it bolts straight onto your line.

Need the part it holds digitised first? We can 3D scan it.

Applications

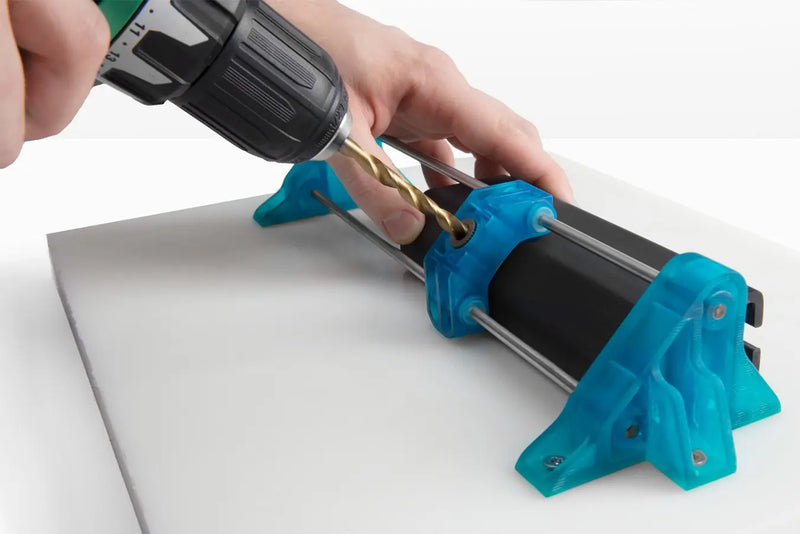

  • Drill jigs and drill guides

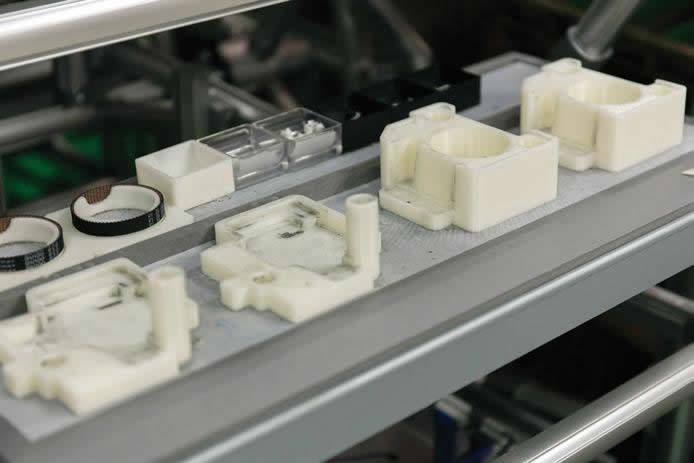

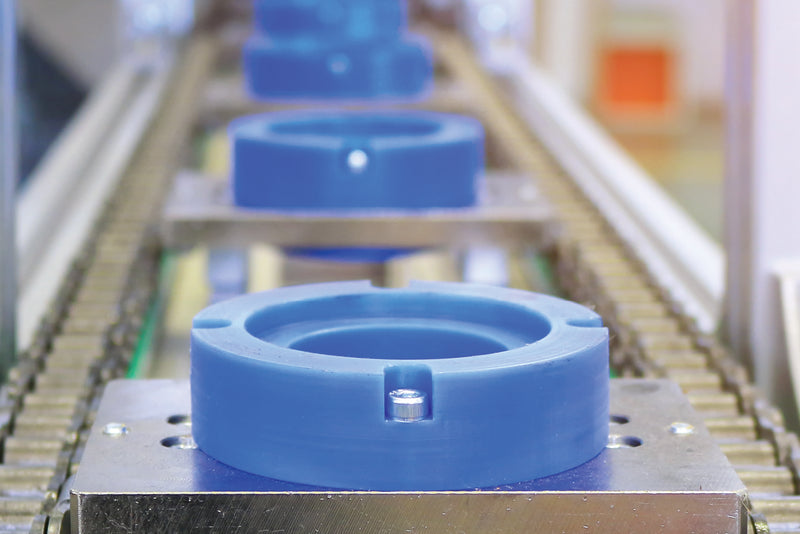

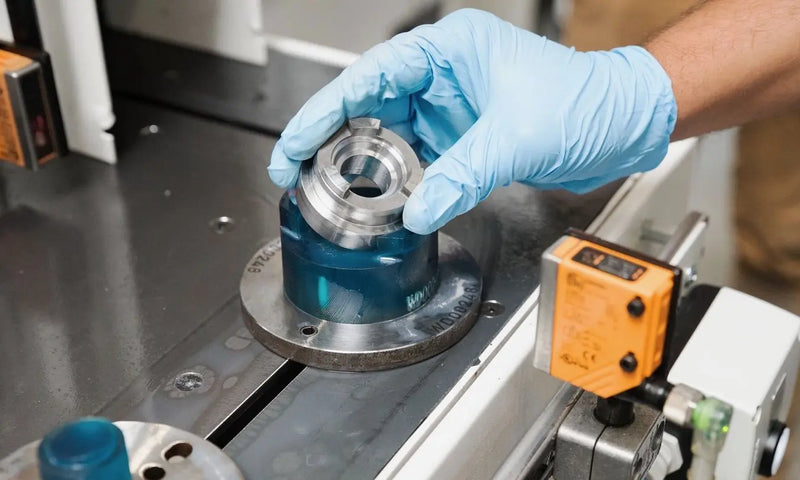

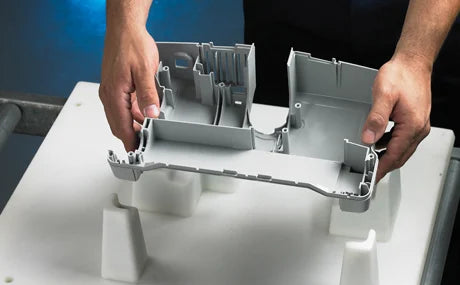

  • Assembly fixtures and part nests

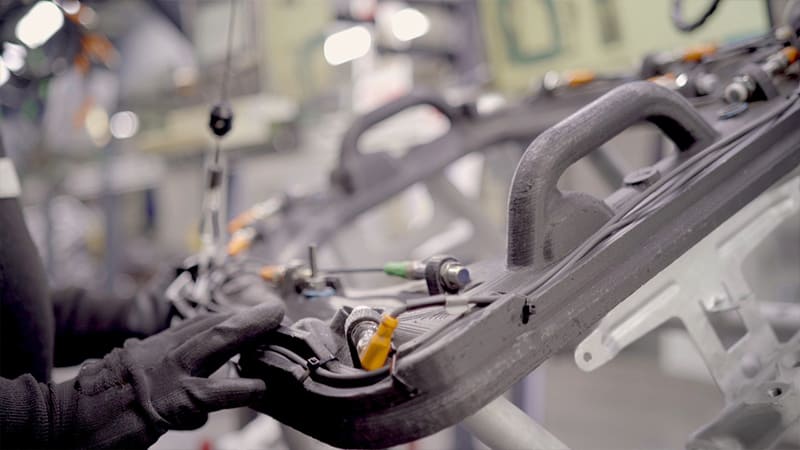

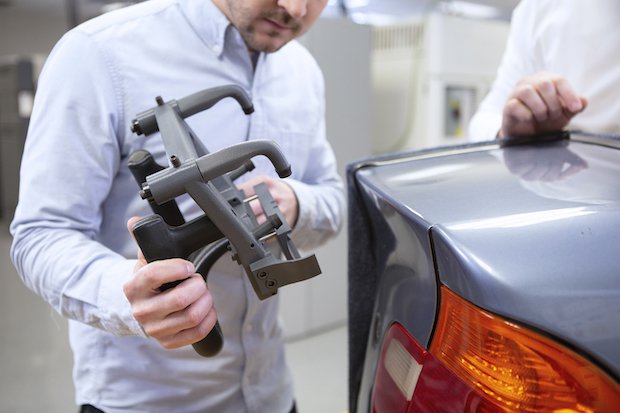

  • Check gauges (go/no-go)

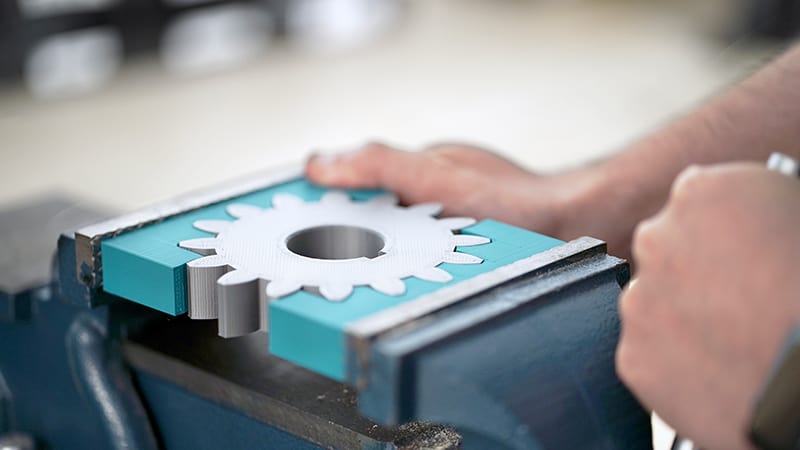

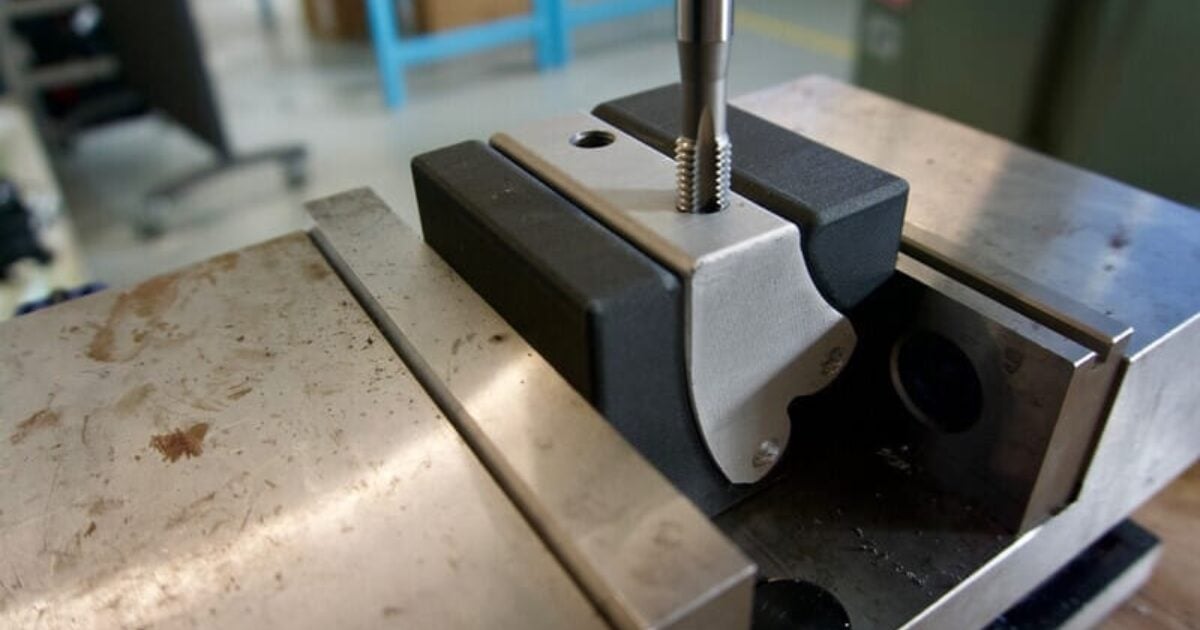

  • Soft jaws

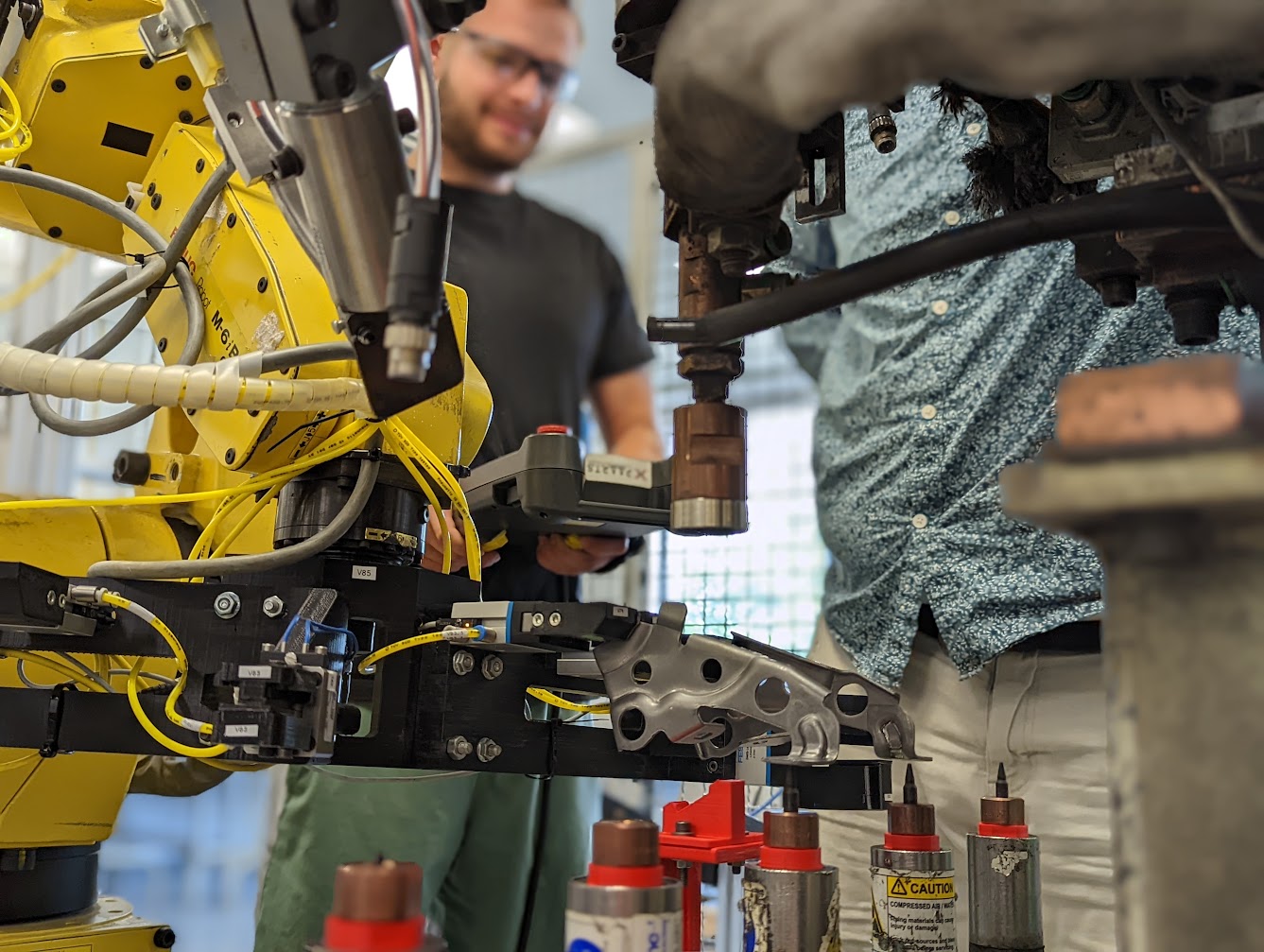

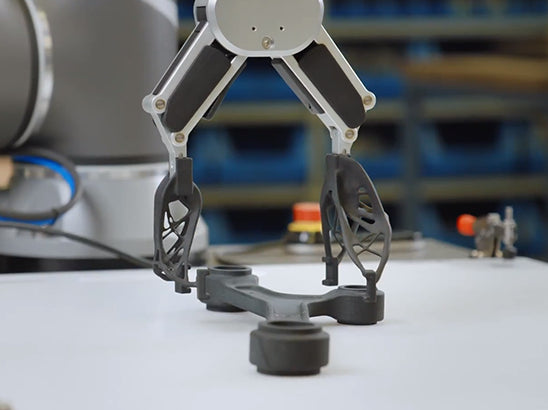

  • End-of-arm tooling
  • Pick-and-place fixtures

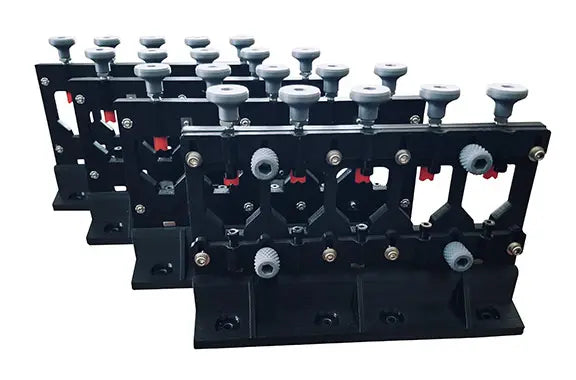

  • Inspection and CMM fixtures

Materials

Case studies

Jig and fixture case studies

All case studies
Improving Window Assembly: Custom Production Drill Jigs
Manufacturing

Improving Window Assembly: Custom Production Drill Jigs

How custom 3D printed drill jigs replaced manual drilling methods.

Improving Rail Safety: Custom Lockout Enclosures
Manufacturing

Improving Rail Safety: Custom Lockout Enclosures

A 3D printed tamper-proof solution that secured 45 rail regulators.

Validating AgTech: 600 Flame-Retardant Prototypes
Manufacturing

Validating AgTech: 600 Flame-Retardant Prototypes

How large-format PC-FR 3D printing let an agricultural client validate form and function in the field before committing to injection molding tooling.

Technologies

We match your part to the right machine

Process

How to get started today

  1. Submit Your Design

    Send us your digital file (.STL or .STEP) or submit a photo or physical part for us to reverse engineer.

  2. Technology Selection & Design Revision

    Our experts select the optimal technology (FDM, SLS, SLA, or Industrial FDM) based on part needs.

  3. Production & Testing

    We print your component, then ship it (or you pick it up) for on-site testing and validation.

  4. Optimize & Finalize

    Review performance feedback and make necessary adjustments to the design or materials before final production.

Free sample

Request a Free Sample From Us

Submit your project details to request a free, no-obligation sample part. Reserved for businesses and engineers evaluating our services for production or tooling.

Request a sample

On site

On Site Services

Our experts come to you to review your application and environment, and confirm the right 3D printing or scanning solution before you invest.

Book a visit

Replacement parts

Need a Broken Part Recreated?

We digitally recreate and produce broken, obsolete, or overpriced parts on demand, with no high minimum order quantities.

Contact our experts

Jigs and Fixtures Questions

PA6-CF carbon fibre nylon is our go-to material. It is stiff, light and hold up on the shop floor. For soft jaws and part nests we can add TPU so parts are not scratched.

For many drill jigs, assembly nests, check gauges and end-of-arm tooling, yes. Printed fixtures are lighter and much faster to make. Send us the part and we will tell you honestly if it should stay metal.

No. Send the part, a drawing or a photo with dimensions. We design fixtures in SolidWorks and can 3D scan the part it has to hold.

Small jobs can be ready within a day. Larger quantities or complex parts can take longer, and we offer Standard and Expedited printing to meet your deadline.

Yes. We install heat-set threaded inserts and other hardware so fixtures bolt straight onto your line.

Pick up in Cambridge, or we ship across Canada. Parts usually arrive anywhere in Ontario 1 to 2 days after they ship. Call 226-400-7941 to arrange pickup.
