Restoring Packaging Lines: Rapid Composite Replacement Part
How industrial 3D printing restored a critical packaging line component.
When a critical production component fails, waiting months for a replacement can create significant operational and financial consequences. Reverse engineering and industrial 3D printing can provide a rapid path from a damaged part to a functional replacement, without the extended lead times and costs associated with conventional machining or OEM sourcing. For manufacturing environments where equipment downtime needs to be minimized, this approach enables complex replacement components to be reproduced, validated, and returned to service in a fraction of the time.
Technology
Fused Deposition Modelling (FDM)
Material
Chopped Carbon Fiber Nylon (Onyx CF)
Volume
Iterative prototyping batch and final functional component.
THE CHALLENGE
A critical component on an active packaging line had failed, putting continued production at risk. Replacing the part through OEM sourcing or conventional CNC machining would have required a minimum six-month lead time and cost more than $2,000 USD for a single replacement. With the equipment dependent on the damaged component, waiting for a conventional replacement could have resulted in extended downtime and substantial losses from interrupted production. A replacement was needed quickly to restore the equipment to operation and avoid a prolonged disruption to the production line.
What we did
Reverse-Engineered the Damaged Component: Measured the original arm on-site and recreated its geometry, mounting points, and required clearances in CAD to establish an accurate digital replacement.
Validated the Design Through Rapid Prototyping: Produced iterative prototypes to verify fit, movement, and alignment with the existing pneumatic piston and packaging equipment before final production.

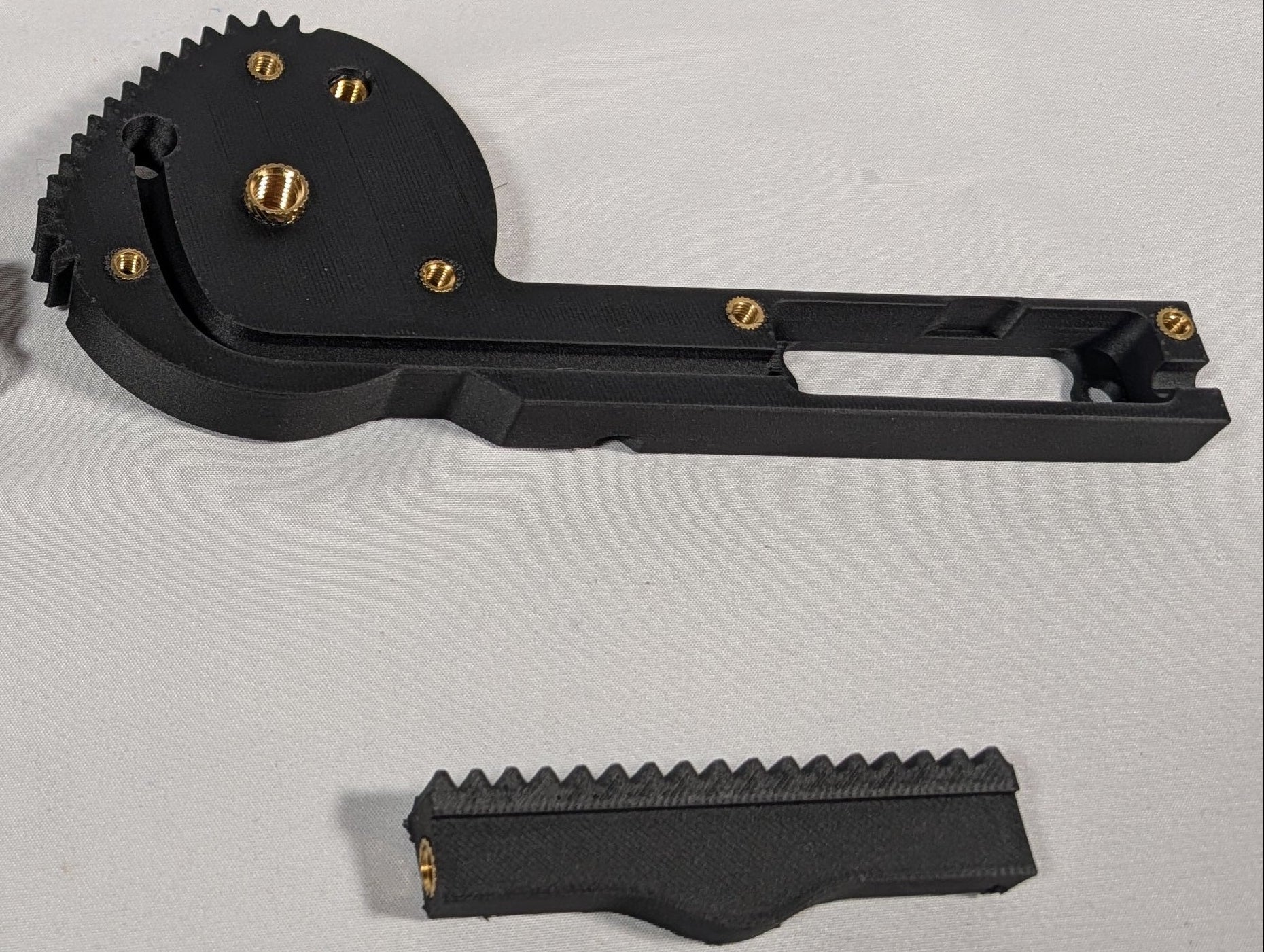

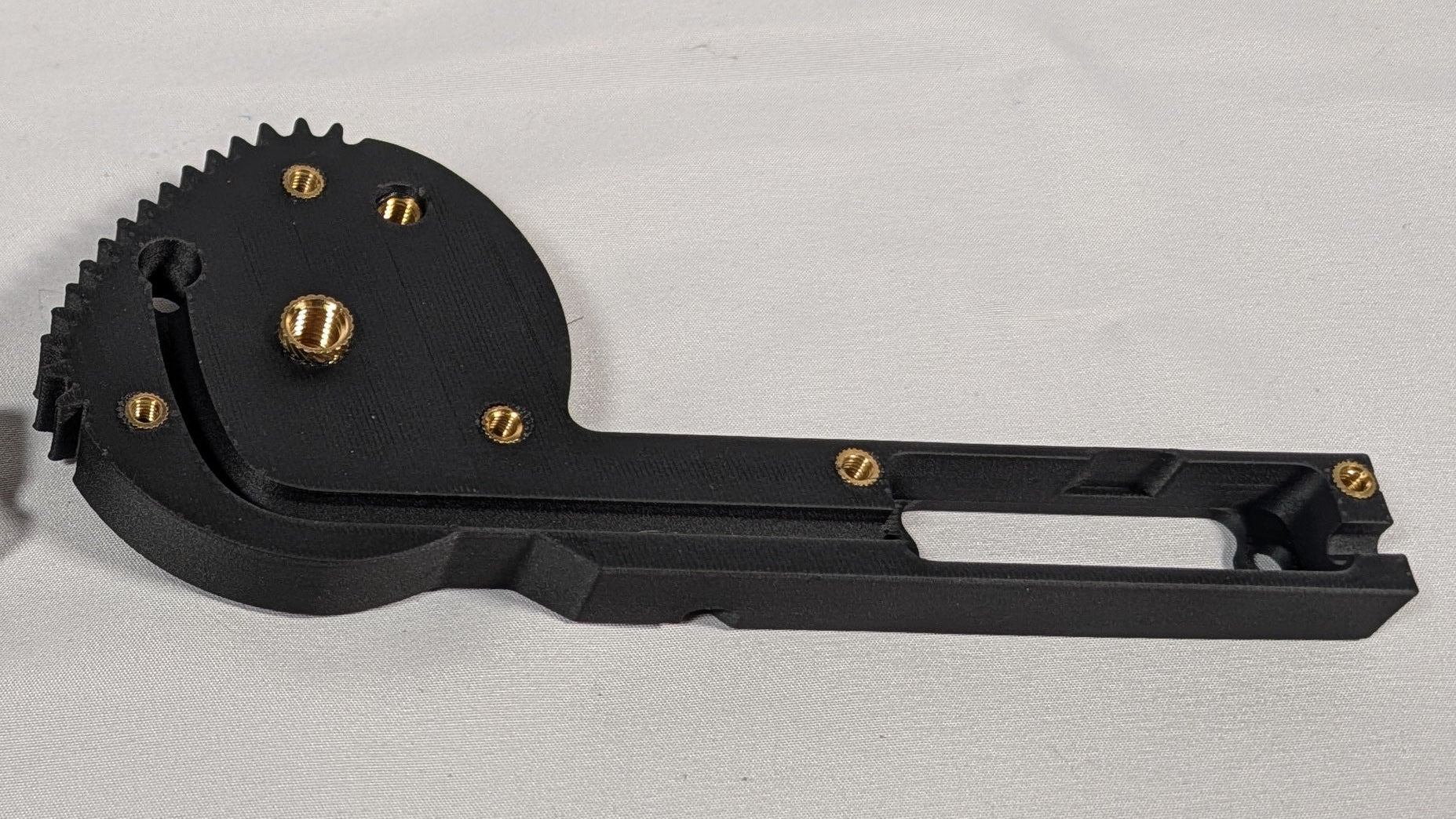

Manufactured with Onyx CF: Produced the final replacement arm using chopped carbon fiber-reinforced nylon, providing the strength, rigidity, and fatigue resistance required for repeated mechanical operation.
Installed and Calibrated On-Site: Integrated the replacement arm with the existing piston linkage, installed threaded inserts, and calibrated the component on the active production line to confirm reliable operation.
why it worked
Onyx CF provided the strength, rigidity, and fatigue resistance required for a component subjected to continuous mechanical movement. The carbon fiber reinforcement helped maintain the arm’s structural stability under repeated actuation and vibration, while the nylon base provided the durability needed for high-cycle operation on the production floor. The material’s strength-to-weight ratio also allowed the replacement arm to maintain the required mechanical performance without introducing unnecessary weight to the existing pneumatic system.
Reverse engineering and FDM production also provided a significant advantage over conventional replacement methods. Rather than waiting at least six months and paying more than $2,000 USD for a traditionally machined replacement, the damaged component was measured, digitally recreated, prototyped, and validated before final production. Multiple prototype iterations allowed fit and movement to be confirmed against the existing equipment before the final arm was installed and calibrated on the production line. The resulting process restored a critical component while avoiding the extended lead time associated with OEM sourcing and conventional machining.
Where a model like this fits
Reverse engineering and industrial 3D printing are well suited to replacement parts for manufacturing equipment, production machinery, and automated systems where conventional sourcing can involve long lead times or high costs. The approach is particularly valuable for discontinued, damaged, or custom components that are difficult to source quickly, allowing replacement parts to be reproduced from an existing physical component and validated before installation. From conveyor systems and packaging equipment to automated machinery and industrial tooling, 3D printing can provide a practical way to restore equipment operation while reducing downtime and avoiding the cost of traditional single-part manufacturing.
MORE CASE STUDIES

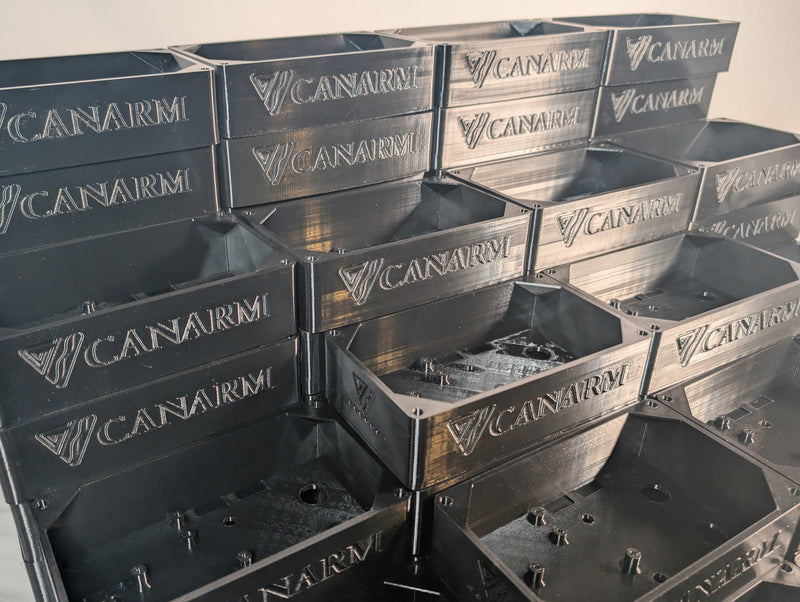

Validating AgTech: 600 Flame-Retardant Prototypes
How large-format PC-FR 3D printing allowed an agricultural client to validate form and function in the field before committing to expensive injection molding tooling.

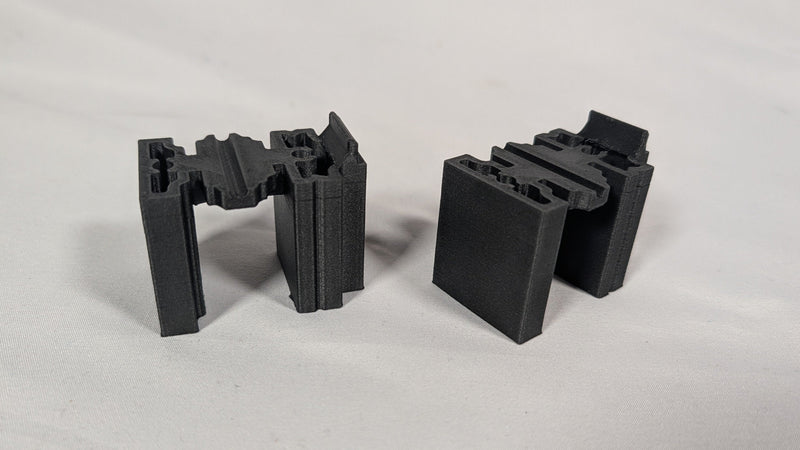

Improving Window Assembly: Custom Production Drill Jigs
